Benelli M2 Cycling Problems

Postby Jonny Cormie » Fri May 02, 2014 2:24 pm

Hi All,

Recently started having issues with a Benelli M2. It was previously very reliable and would cycle anything I could throw at it, it's now being a total pig and appears to fail to eject fully, the empty case often getting caught between the bolt and the ejection port (not stovepiping, the case is side on).

The gun's been cleaned and lubed and the only modification it's had is to the shell stop where we've cut notches in it to decrease the tension.

Am I missing something really obvious? Has anyone else had this issue?
Jonny Cormie

Posts: 13
Joined: Wed Dec 04, 2013 4:44 pm

Re: Benelli M2 Cycling Problems

Postby Mick Flatley » Fri May 02, 2014 4:34 pm

Hi Johnny,

First make sure it is lightly lubed - not too much. Next try someone else's mag spring. My reliable M2 has only ever had issues with the mag spring and on very cold days!

I am no expert on the M2 and I am sure further advice will follow.

Good luck.

M
Mick Flatley

Posts: 641
Joined: Thu Mar 31, 2011 6:53 pm
Location: Lancashire, North West England

Re: Benelli M2 Cycling Problems

Postby Andy Haines » Fri May 02, 2014 6:18 pm

John,

Yeh, the mag spring can cause malfunctions if it is fatigued, as can the recoil spring if it is losing its tension.

Also check that the little spring-loaded ejector is still in place and the spring is ok.

Andy
Master Class Custom Guns

http://www.customguns.co.uk

"Never rub another man's rhubarb..."
Andy Haines

Posts: 406
Joined: Sat Jun 09, 2012 12:11 pm

Re: Benelli M2 Cycling Problems

Postby Neil Smith » Fri May 02, 2014 6:48 pm

Andy Haines wrote:John,

Also check that the little spring-loaded ejector is still in place and the spring is ok.

Andy



I agree with Andy, this is the likely culprit.

Check it is free to move & not all bunged up with gunk.

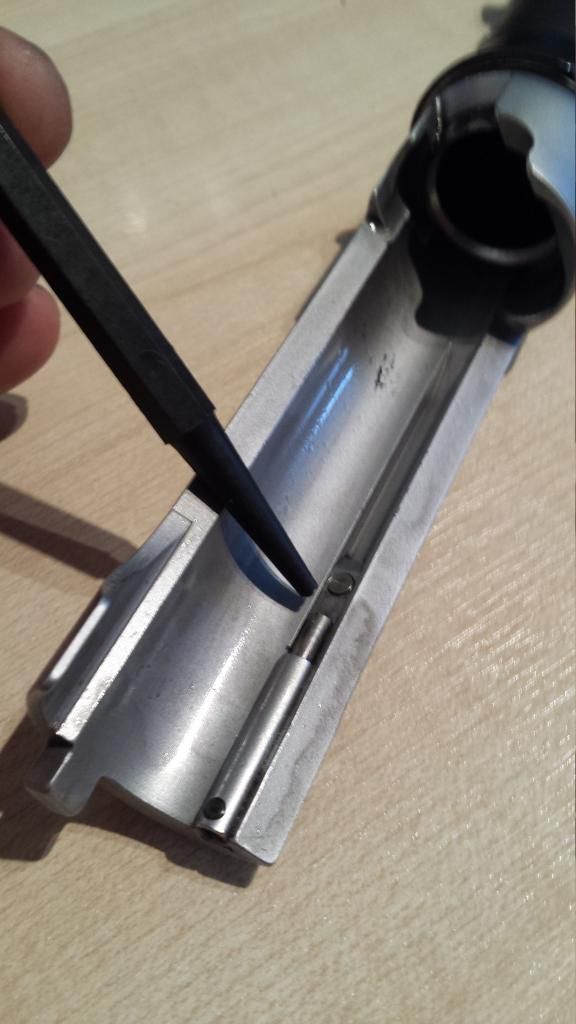

Here is a picture of the plunger in its place on the barrel extension.


N
“You can never change things by fighting the existing reality. To change something, build a new model that makes the existing model obsolete.”
Buckminster fuller

NRA PSG National Champion 2013 (Pump Division)
User avatar
Neil Smith

Posts: 1609
Joined: Thu Mar 31, 2011 10:43 pm
Location: Worcester Norton

Re: Benelli M2 Cycling Problems

Postby Jonny Cormie » Wed May 07, 2014 8:59 am

Thanks for the replies guys, I'll have a look tonight and see what condition the ejector's in. I'll be chuffed if that's all it turns out to be!
Jonny Cormie

Posts: 13
Joined: Wed Dec 04, 2013 4:44 pm

Re: Benelli M2 Cycling Problems

Postby John Chambers » Thu May 15, 2014 8:30 am

Neil Smith wrote:

N


Is it a gunsmithing job to replace these parts? There seem to be two rivets holding the ejector assembly onto the barrel which need drilling out and new ones pressed in. Is that right?
John Chambers

Posts: 150
Joined: Mon Jan 14, 2013 7:47 pm
